TR-10 Tunnel Roof 12x10m. / 40×33 ft.

TR-10 Tunnel Roof

Using HD34 in a different way and shape

The TR10 Tunnel Roof is a hinged truss based structure with an eye on beauty and strength.

Only standard HD34 lengths are used!

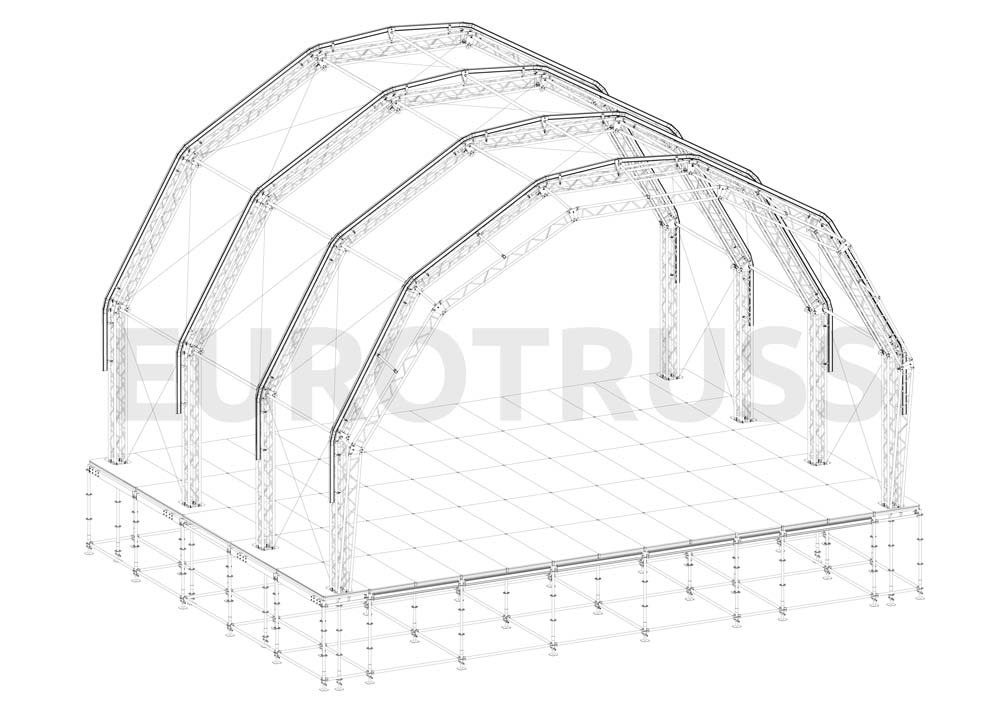

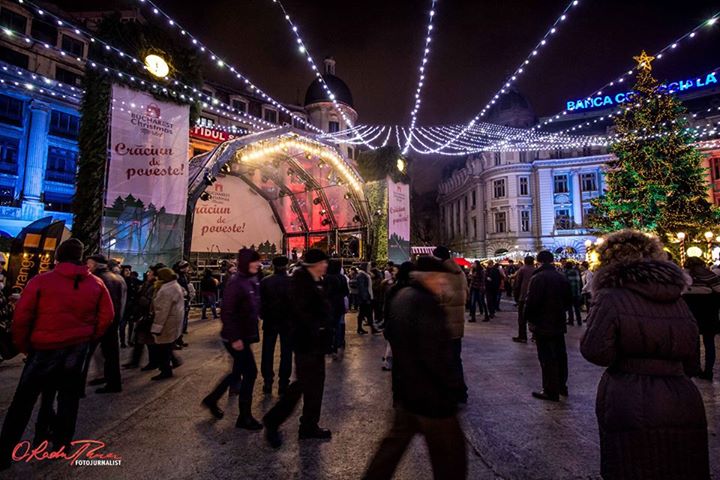

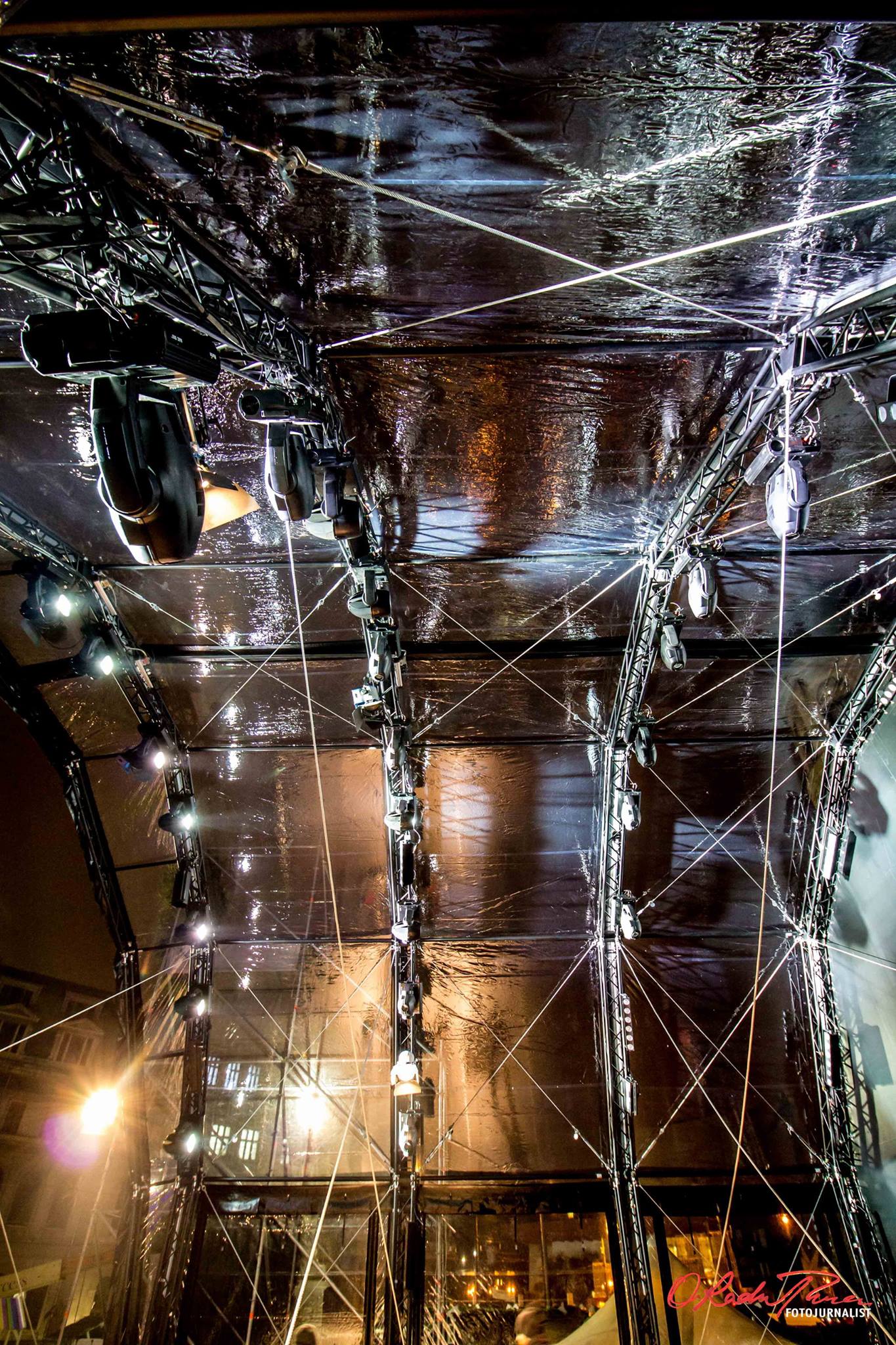

The Tunnel Roof consist of standard HD34 straight truss sections and carriers great features like an impressive free clearance of 7,5m (24,6ft) and an integrated cantilever of ladder truss. Beside this a clamped on keder tent profile on the truss sections for its canopy, guarantees you a full closing and allows you full flexibility in depth.

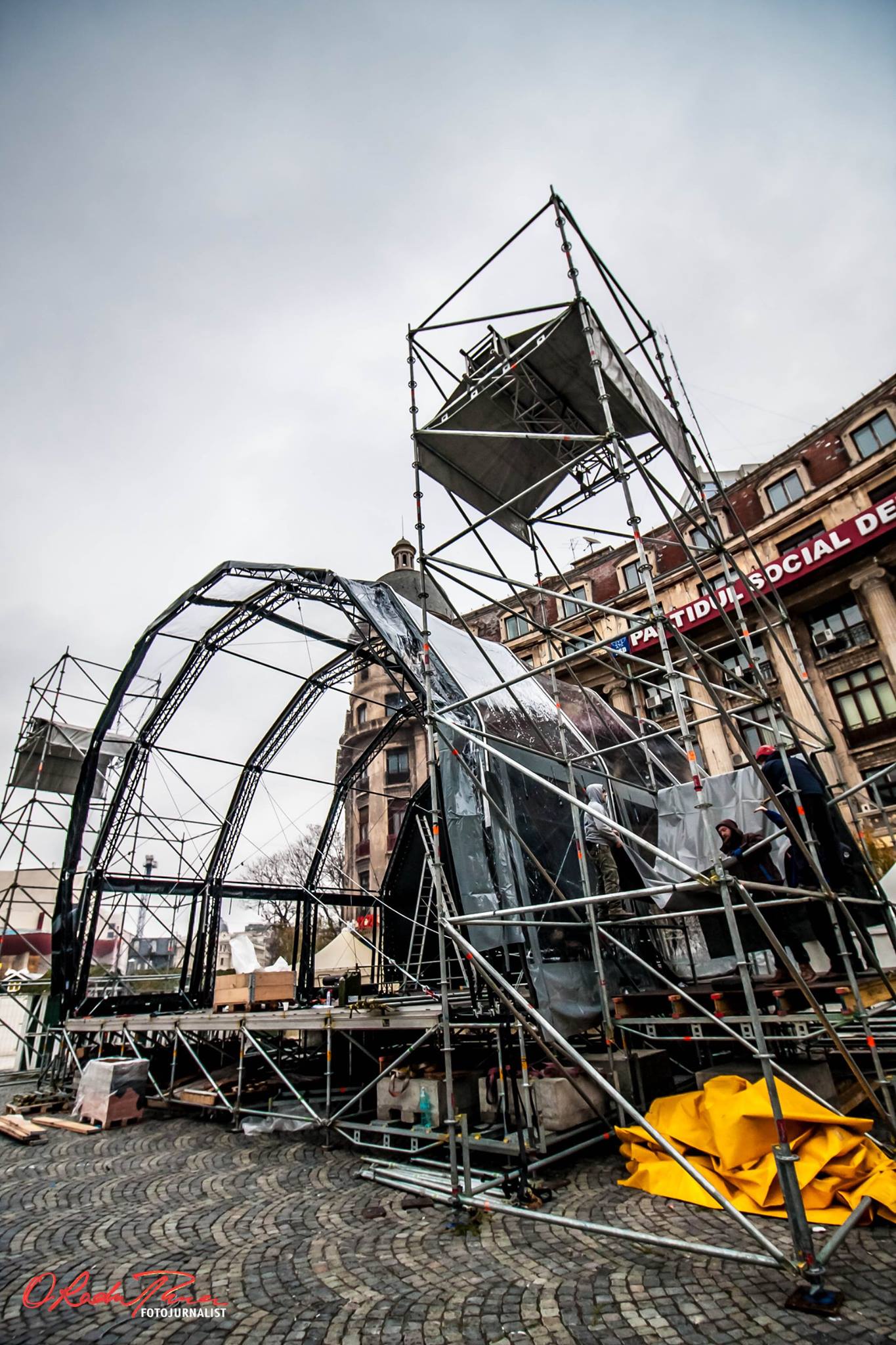

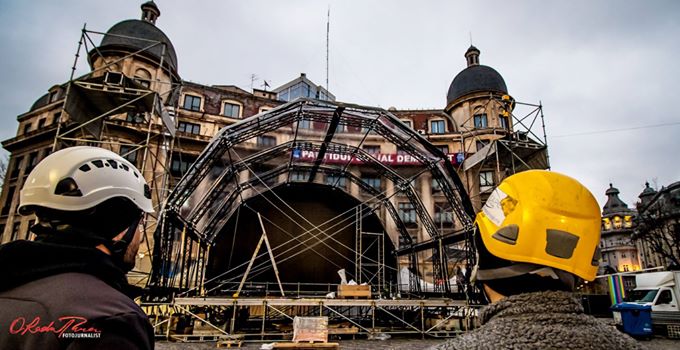

Using HD34 in a different way and shape. The tunnel shape gives you impressive load figures. Build from HD34 and using an integrated base in the steel scaffolding stage with Eurotruss stage decks topping it off. Also available as stand alone structure, ask for the possibilities.

Technical specifications

12x10m. / 40x33 ft.
~7,5m. (24,6 ft.)
Stage Height
max. 2m.
4 Arches HD34 Square Truss
Cantilever Size
1,2m. overhang
Cantilever Truss
HD32 Ladder Truss
Max. UDL
3.300 kg. / 7.275 lbs.
Max. CPL
2.100 kg. / 4.630 lbs.
Max. Wind force*
10 Bft.
Keder Profile
Clamped on HD34
Transparant or Full PVC Canopy
Ballast Safe in Layher Scaffolding
