SR-50 24×16

This roof meets all the required international standards and has been pre-calculated and comes with a full structural report and manual according the most recent regulations.

Naturally PA Wings and Side Houses are available.

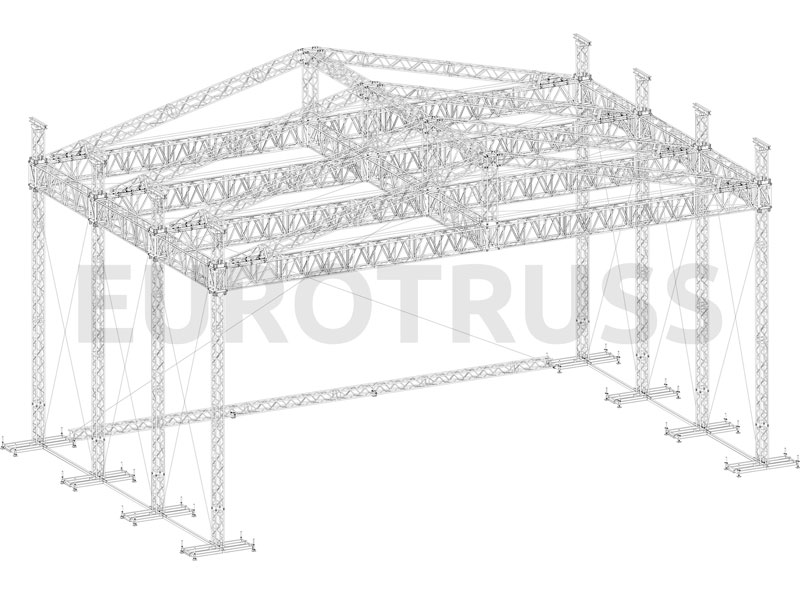

The SR50 Roof consist of a TT Ground Support on eight TD44 Towers and a Roof Structure of ST Truss.

The SR50 Roof is a tower based structure with a saddle roof. This saddle roof has a standard impressive load bearing TT Main Rig and an ST roof structure with a fixed angle on the four ST gables which enables you to re-build the roof in various dimensions. The standard SR50 TT Roofs are available in 24x16m, 20x16m and 16x12m all on eight TD44 Towers.

The SR50 TT Pro Roof is designed and calculated to be set up on ballast bases with compression beams between the side and rear towers or can be set up with integrated bases (ballast safes) in any kind of steel scaffolding stage. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.

Technical specifications

Type
SR-50
Size
24x16
Tower
TD 44
QTE Towers
8
Main Rig
TT
Roof Structure
ST
PA Wing possible
Yes
Compression
Yes
Max. Load PA Frame
2000 Kg.
Width
24,12m
Clearance
11m
Depth
16,36m
Max. Pointload
11000 Kg.
Max. UDL
22100 Kg.
