SR-10 10×8

The SR10 guarantees a good workable load and this combination ensures you of a minimum of trucking and storage space.

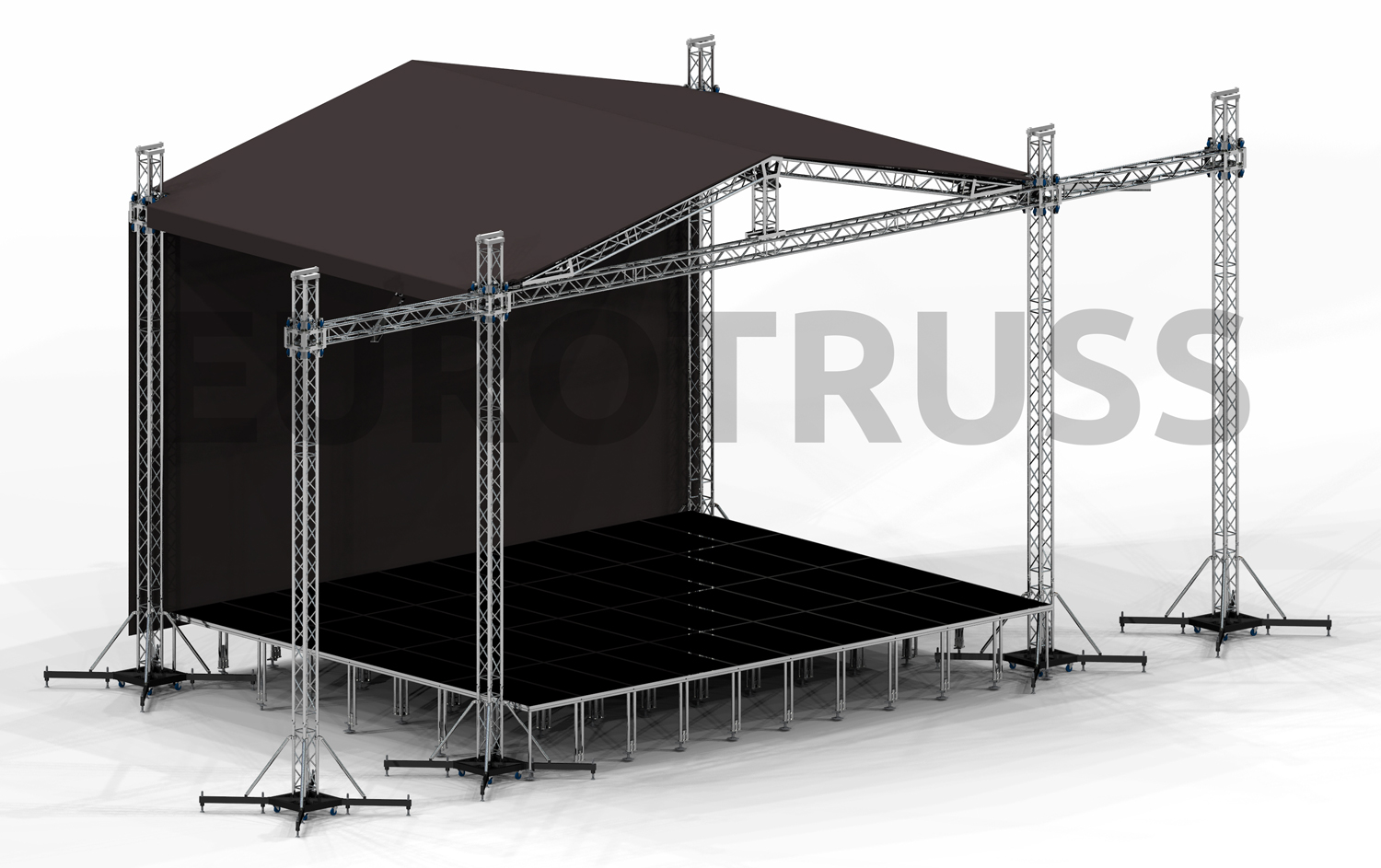

This SR10 Roof can be lifted motorized or by manual chain hoists. The SR10 Roof is designed and calculated to be set up on single steel bases. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.

This roof meets all the required international standards and has been pre-calculated and comes with a full structural report and manual according the most recent regulations. Naturally PA Wings are available.

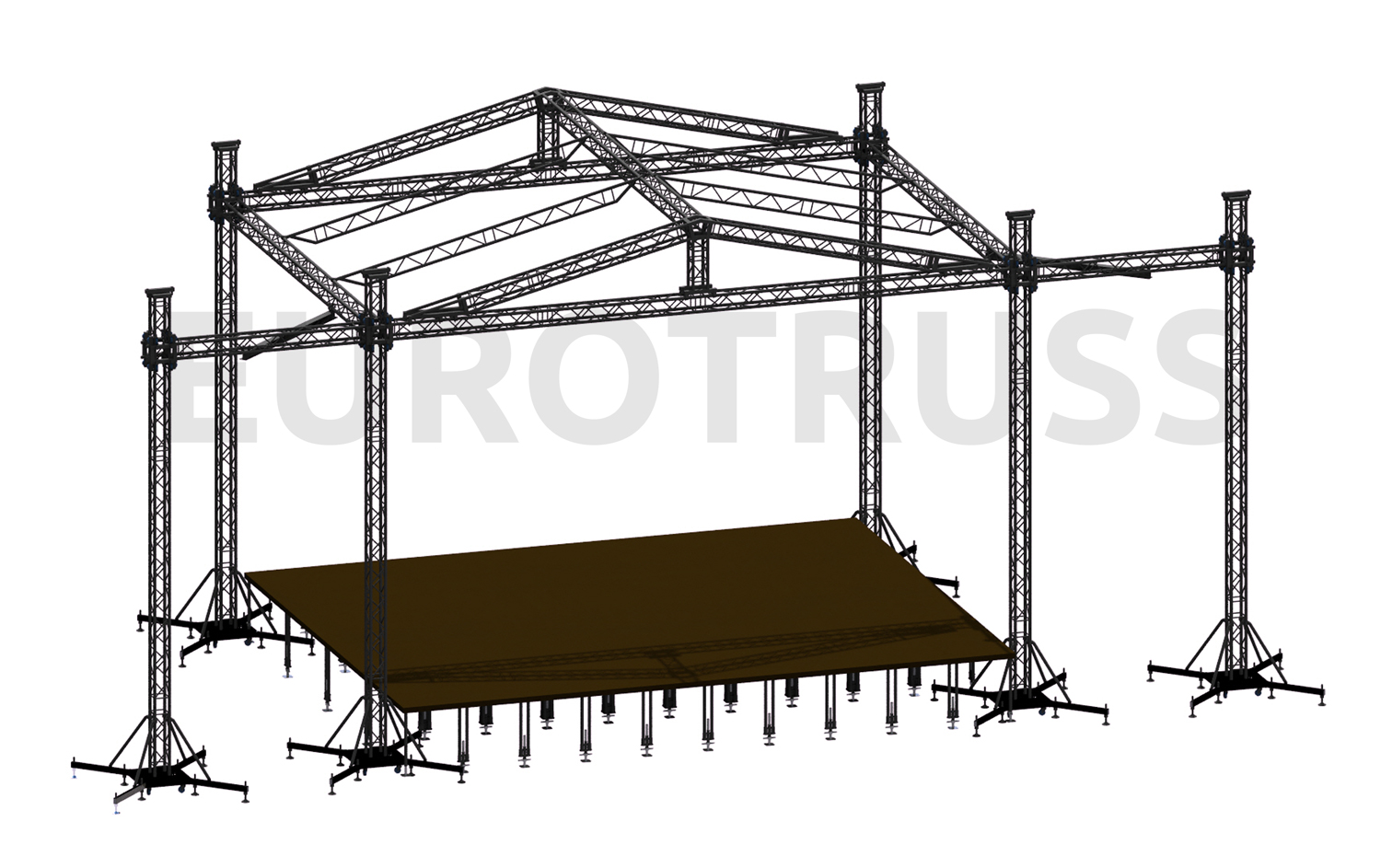

The SR10 Roof consist of a HD/FD34 Ground Support on four HD/FD34 Towers and a Roof Structure of HD/FD34 Truss and Roof Ladder Supports.

The SR10 Roof is a tower based structure with a saddle roof. This saddle roof has a relative high load bearing HD/FD34 Main Rig with an HD/FD34 roof structure with a fixed angle on the two HD/FD34 gables which enables you to re-build the roof in various dimensions.

All the standard sizes 10x8m, 8x6m and 6x4m are to be build with FD34 and HD34 of which the HD34 increases the load bearing capacity of the SR10 Roof. As the ground support and additional roof is mainly built out of standard HD/FD 34 elements, only a few special roof parts are required to build a SR10 Roof. This makes the SR10 a very attractive and efficient roof system to acquire.

Technical specifications

Type
SR-10
Size
10x8m.
Tower
FD / HD 34
QTE (Towers)
4
Main Rig
FD / HD 34
Roof Structure
FD / HD 34 / 32
PA Wing possible
Yes
Compression
optional
Max. Load PA Wing
1000Kg.
Width
10,24m.
Clearance
7m.
Depth
7,82m.
Max. PL
1400
Max. UDL
1200
