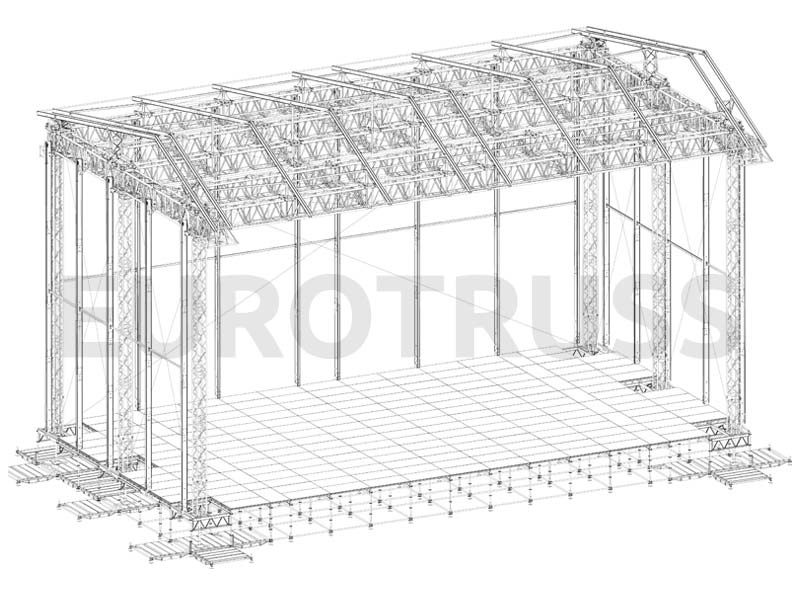

PR-15 Pitch Roof 26×15

The PR15 Roof consist of a TTS Ground  Support on six TD50 Towers and a Roof Structure of special tent profiles with integrated keder profiles and is the big brother of the PR10. Same in design and concept but delivering more clearance (add 2m / 6,6ft in height) and app 50% more load capacity than the PR10.

The PR15 Roof is a tower based structure with a pitched  roof. This pitched roof has a standard cantilever and a  special PA frame at the sleeve blocks of the front towers which can carry a PA Load of 2.000 kg (4.400 lbs) each and is a working platform to slide in the outer keder canopy. This is a result of the fact that the towers are positioned under the roof  structure in order to have a fully closed roof top.

The PR15 is designed, engineered and manufactured to ensure  the possibility of re-scaling in the width with 4m (~13 ft) and 3m (`10ft) in depth and 2,5m (~8,2 ft) in height all without adding any new material. The only pitch roof which can be rebuild in various sizes.

PA Wings, Side Houses, Back Storage and Loading Docks are  available as an option. Ask for the details of the integrated scaffolding stage and decks.

Technical specifications

26x15 / 85x50 ft.
QTE (Towers)
Main Rig
Roof Structure
Keder profile / PVS Canopy
PA Wing possible
Max. Load PA Wing
2.000 kg. / 4400 lbs.
26,2 m. / 86,0 ft.
13,0 m. / 42,7 ft
14,4 m. / 47,2 ft.
Max. CPL
23.000 / 50.706
Max. UDL
26.800 / 59.084
