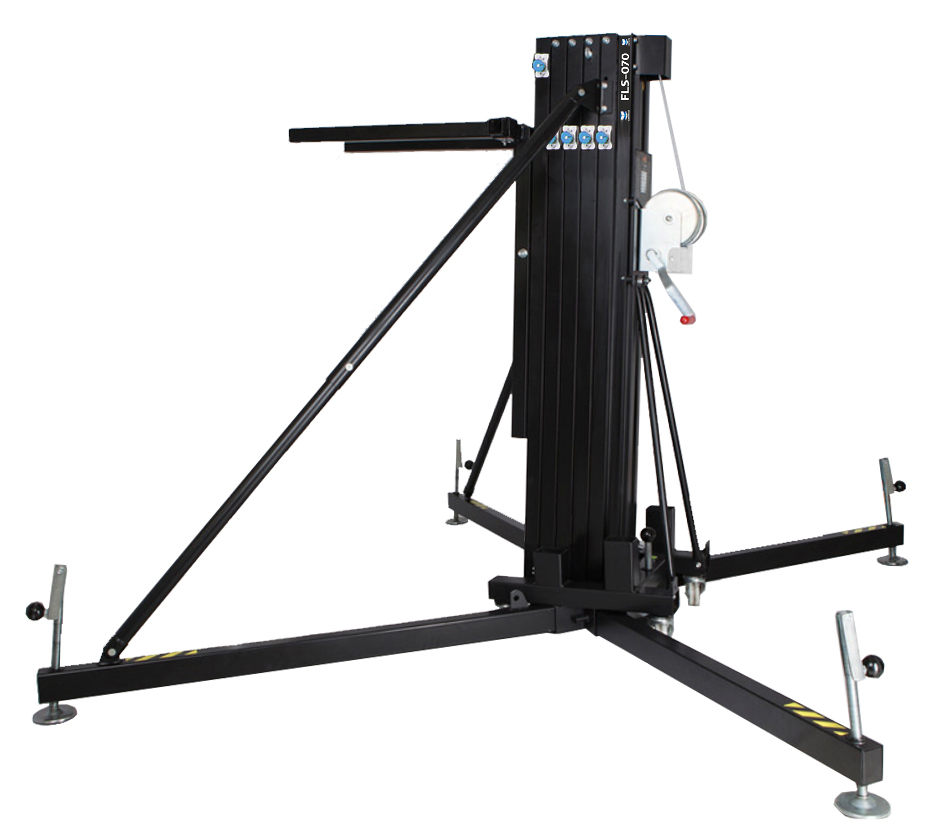

FLS-070 is the pro lifter for ground lifting heavy line array

up to a 500kg load up at 7,0m. The FLS-070 has an enhanced reinforcement design to restrain heavier and larger audio systems. Unique ALS (Auto-Lock-Security), locking bolts and brake winch give you the power and the peace of mind to fly your PA.

The position of the front legs and distance between them increase the stability and spacious enough to position the subwoofer. The FLS-070 is the pro lifter for larger audio systems.

All Eurotruss lifters are powdercoated black.


  • Main body made out of 6082-T6 alluminium
  • Steel base and legs DIN 2394, catches and pulleys of ST-37 steel.
  • Winch with automatic brake. Certification CE and GS TÜV.
  • Steel cable guided by channelled steel pulleys with ball bearings.
  • Steel cable DIN 3060. Quality 180 Kg/mm2 twist resistant. Cable diameter : 6 mm.
  • Exclusive ALS system (Auto-Lock Security)

Technical specifications

209 kg / 460.8 lbs
Min. load
25 kg / 55 lbs
Max. load
500Kg (1102.3 lb)
Min. height
1,87 m / 6.2 ft
Max. height
7m (22.96′)
Unfolded base
2.57 x 2.12m (8.4 x 7′)
Folded size
55x68x187 cm / 1.8x2.23x6.13 ft
Number of profiles
74,5 cm / 29.3 in
